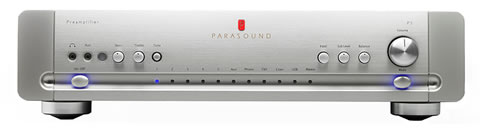

Parasound Halo -P 5 2.1 STEREO PREAMP
Features
- Burr-Brown PCM1798 DAC with USB, Optical and Coax inputs
- Coax and optical accept all sampling rates up to 192 kHz, 24-bit
- USB accepts up to 96 kHz, 24-bit
- Incoming jitter on all three digital inputs is significally attenuated with an effective clock recovery system
- Analog Bass management with high and low pass crossovers
- Home theater bypass input for surround sound integration
- Front panel subwoofer level control
- 5 RCA line level inputs
- 1 XLR balanced input (parallels Input 5 RCA jacks)
- Phono input for MM & MC cartridges with 100 Ohm or 47k Ohm load
- Front panel Aux input with automatic +12 dB gain stage
- Balanced XLR and RCA left and right outputs
- 1 balanced XLR and 2 RCA subwoofer outputs
- Bass & treble controls with defeat from remote or front panel
- Headphone jack with 10 ohm output impedance
- Rear panel IR input and IR loop output jacks
- 12 V output to trigger power amplifiers and other devices
- Automatic turn on with 12 V trigger or AC power
- Fixed level record output
- Premium motor-driven Alps potentiometer volume control
- Left/Right Balance control
- Remote control with discrete on/off power buttons
- 0.5w standby power consumption meets Energy Star spec
- Rack mounting adapter available (Model HRA 2 sold separately)
- Available in silver or black finish
- Parasound 5 year parts, 5 years labor warranty (USA only)
SPECS
Frequency Response
10 Hz - 100 kHz, +0/-3 dB
Total Harmonic Distortion
< 0.01 %
Crosstalk
> 70 dB at 20 kHz
Input Sensitivity
300 mv: 1 Volt Out
Total Gain: 10 dB
Maximum Output: 7 Volts
Input Impedance
Unbalanced: 24k Ohm
Balanced: 100k O per leg
Output Impedance
Unbalanced: 100 Ohm
Balanced: 470 Ohm per leg
S/N Ratio - Line Inputs 1-5
> 108 dB, input shorted, IHF A-weighted
> 88 dB, input shorted, unweighted
S/N Ratio - DAC Inputs
> 108 dB, input shorted, IHF A-weighted
> 90 dB, input shorted, unweighted
S/N Ratio - Phono Inputs
MM > 80 dB, input shorted, IHF A-weighted
MM > 70 dB, input shorted, unweighted
MC > 67 dB, input shorted, IHF A-weighted
MC > 55 dB, input shorted, unweighted
Hi/Low pass crossover slope
12dB / Oct
DC Trigger Requirements
+9 Vdc to +12 Vdc, 2 mA
XLR Pin Identification
1 = Ground (Shield)
2 = Positive
3 = Negative (Return)
Dimensions
Width: 17-1/4” (437 mm)
Depth: 13-3/4” (350 mm)
Height, with feet: 4-1/8” (105 mm)
Height, without feet: 3-1/2” (89 mm)
Net Weight
14 lb. (6.3 kg)
Shipping Weight
21 lb. (9.5 kg)
Power Requirement
Standby: 0.5 Watts
Power On: 20 Watts
100-250 Volts, 50-60 Hz (Automatic)
|
|
